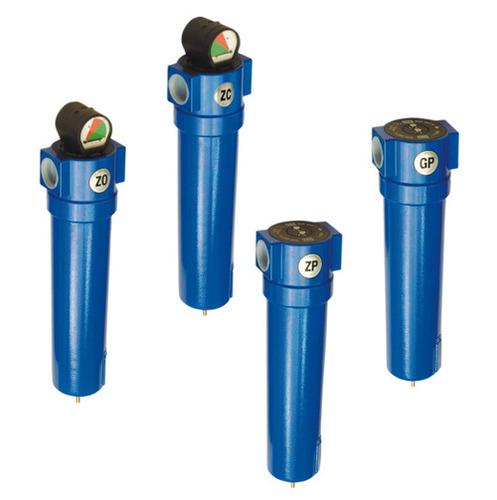

Compressed Air Filter

GEM Compressed Air Filters are engineered to deliver high-efficiency removal of oil, moisture, particulates, and other contaminants from compressed air systems. Designed for critical industrial applications, these filters protect downstream equipment, improve air quality, and ensure compliance with ISO 8573 standards.

Technical Specifications
Parameter Details
Particle Removal 3 micrometer, 0.1 micrometer, 0.01 micrometer, 0.005 micrometer
Efficiency 99%, 99.99%, 99.9999%
Oil Carryover (Residual Oil Content) 0.1 mg/m cube, 0.01 mg/m cube, 0.005 mg/m cube
Pressure Drop - less than / equal to 0.1 bar (g)
Maximum Operating Temperature 80degreeC
Maximum Operating Pressure 16 kg/cm square & 42 kg/cm square
Filter Media Polypropylene, Borosilicate, Borosilicate with impregnated activated carbon
Flow Capacity 35 CFM - 5000 CFM
Housing Material High-grade aluminum (small models), carbon steel for higher pressures
Drain Options Manual, automatic float type, or zero-loss electronic drains
Design Standard ISO 8573 compliant filtration
Warranty

12 Months against manufacturing defects (extended warranty available on request).

Key Features & Benefits

Ultra-fine particulate & oil removal for high air purity.

Low pressure drop design (- less than / equal to 0.1 bar g) for energy savings.

High temperature & high pressure capability (up to 80 degreeC / 42 kg/cm square).

Multiple filtration media to match application needs.

Long service life & easy element replacement.
