Protection Functions:
35(66)kV Incoming line protection and measurement and control
35(66)kV high-pressure side backup protection and measurement and control
35(66)kV low-pressure side backup protection and measurement and control
10(6)kV Incoming line protection and measurement and control
10(6)kV Feeder protection and measurement and control
10(6)kV busbar protection and measurement and control
10(6)kV transformer protection and measurement and control
10(6)kV generator protection and measurement and control
10(6)kV Capacitor protection and measurement and control
10(6)kV Reactor protection and measurement and control
Automatic switching protection
erformance characteristics:
1.Stabilized voltage and current. Digital keyboard operation, voltage, current from zero to rated value adjustable, output voltage and current value set in advance.
2.High precision, low ripple. The DC power supply is controlled by peak current, and has good load and power regulation rate, and the output voltage and current precision are high.
3.High efficiency. The soft switching technology with international advanced level makes the power supply high efficiency, low noise and high reliability;
4.The protection function is complete. There is an overload protection circuit inside the power supply to ensure the normal operation of the power supply equipment and the safety of the load.
5.Output display. The voltage and current are displayed with high precision LED digital meter.
6.Digital control. All digital control, voltage and current can be realized through digital programming; all the calibration is digital calibration, stable and reliable.
Features:
High reliability and availability
High output
Compatible with both 50Hz~60Hz
Control functions
Commands for control of circuit-breakers (isolators)
Monitoring functions
Self-supervision of relay and protection data (R2R) communication
Trip circuit supervision
Measured-value supervision
Event logging/fault logging
witching statistics
Front design
User-friendly local operation
PC front port for relay setting
Function keys and LEDs f. local alarm

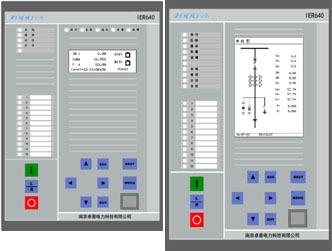

IER640

IER662

IER640

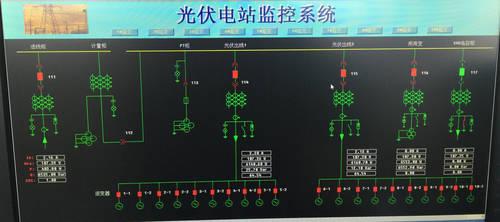

IES6000

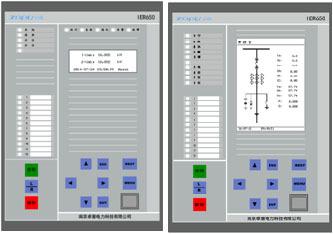

IER650

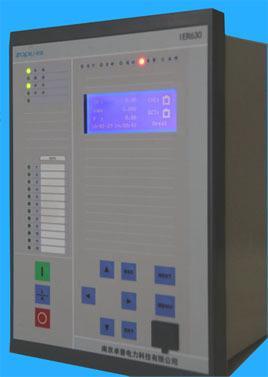

IER630
