Borewell Recharging v - wire Injection Well Indirect Recharging Technology

V-Wire Injection Well Technology is an innovative solution designed to recharge groundwater aquifers by efficiently capturing and filtering surface runoff rainwater. This system is particularly effective in urban and rural areas experiencing declining groundwater levels.

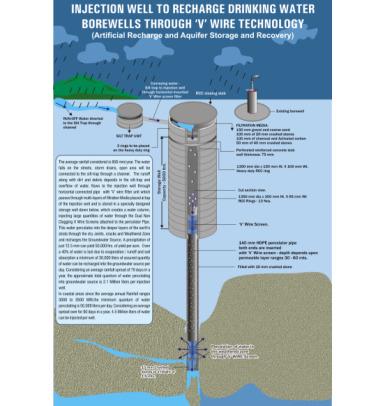

V-Wire Injection Well Technology Working Principle
Collection of Rainwater / Runoff
Rainwater from rooftops, open areas, or stormwater drains is channeled into a silt trap.
The silt trap captures debris, dust, and coarse particles to prevent clogging of the recharge system.

Filtration

1. Water passes through multiple layers of filtration media, such as:
2. Coarse sand
3. Gravel
4. Activated carbon
5. Charcoal
This removes finer impurities and ensures clean water enters the recharge well.

V-Wire Injection Well

The filtered water enters the injection well, which contains V-shaped stainless steel wire screens.
These non-clogging V-wire screens allow water to percolate while keeping out sediments.
Recharge of Groundwater
Water is injected into deeper aquifers, using gravitational force (no pump required).
The V-Wire screens ensure water spreads evenly into the aquifer without clogging the well.
Percolation into Aquifers
The water percolates into cracks, joints, and permeable strata of underground rock formations, recharging the groundwater table.


Benefits:
1. Enhances groundwater levels
2. Reduces dependency on tankers and pumping
3. Eco-friendly and sustainable

Service Provided:
1. Design and Installation of V-Wire Injection Wells
2. Customized solutions for site-specific groundwater recharge
