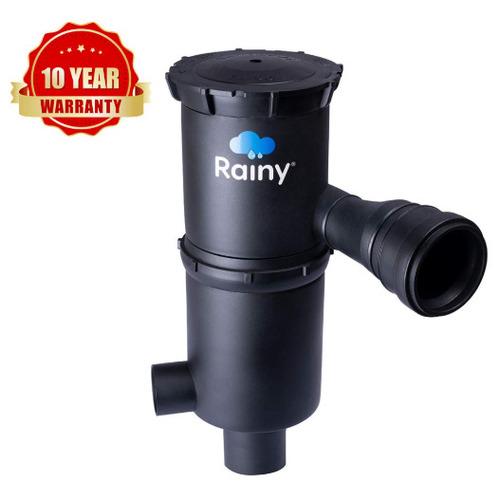

FL-150 Rooftop Rainwater Harvesting Filter

FL-150 Rainwater Harvesting Filter (For Rooftops up to 180 sq.mtrs /1,800 to 1900sq.ft.)

The FL-150 Rainwater Harvesting Filter is an advanced, self-cleaning, and eco-friendly solution for effective rainwater collection in medium-sized residential, institutional, and commercial buildings. Built with dual-intensity technology, it automatically adjusts to varying rainfall from 5 mm/hr to 75 mm/hr, delivering over 90% filtration efficiency with zero power consumption and minimal maintenance.

Key Features

Self-Cleaning & Auto Flush-Out: Works entirely on gravity,no electricity or manual cleaning required.

Dual Intensity Function: Performs efficiently during both light showers and heavy downpours.

360degree Rotatable & Easy Installation: Adapts easily to any roof layout for flexible setup.

Durable Construction: UV-stabilised HDPE housing and SS-304 food-grade mesh screen ensure long life and corrosion resistance.

Low Maintenance: Open-ended, non-clog design with no moving parts or consumables ensuring years of trouble-free performance.

This wall-mountable, self-operating filter functions purely on gravitational force, making it a one-time investment for sustainable and efficient rainwater harvesting.

Awards & Certifications

1. 10 Years Warranty (Patented Product)
2. National Award (CII) Excellent Water Product
3. International Award for Climate Mitigation
4. Certified by the Central Water Resource Ministry (Government of India)

Applications

Filtered rainwater can be:

Stored for gardening, washing, and other domestic uses

Diverted to recharge groundwater

Used to promote sustainable and eco-friendly water utilization

Technical Specifications

Specification Details
Suitable Area: Up to 180 sq.mtrs
Rainfall Intensity: 5 mm/hr to 75 mm/hr
Filter Type: Open Ended, Non-Clog
Working Principle: Cohesive Force & Centrifugal Force
Operating Pressure: 1 foot of gravity head (0.060 kg/cm²)
Max Discharge (CWO): 120 Liters per minute
Filter Element: SS-304 Multi-Surface Screen (Food Grade)
Mesh Size: 250 Microns
Inlet Size: 110 mm
Clean Water Outlet (CWO): 75 mm
Drain Outlet Size: 90 mm
Filter Housing: UV-Stabilised HDPE
Filtration Efficiency: Above 90%
Power Source: Gravity

Packaging Details

Each FL-150 Filter package includes:
HDPE Filter Housing (UV Treated)
SS-304 Filter Element (Food Grade)
Guiding Plate
Heavy Duty Wall Bracket
High-Quality L-Clamps & U-Bolts for Pipe Fixture
Anchor Bolts for Wall Bracket Installation
Intermediate Bush
Clean Water & Drain Pipe Connecting Bushes
Hose Clips
Cleaning Brush
User Guide
